Overview
Product Description
P500 SOM is based on the PANGO Titan3 PG3T500 FPGA (242,176 LUT6 + 484,352 registers), features 2GB DDR4 (32-bit, 2666Mbps) and two 256Mb QSPI Flash chips. It provides 98 HPIO, 54 HDIO, and 16 high-speed transceiver pairs via two 240-pin high-speed board-to-board connectors. Two 200MHz differential clocks are onboard. Ideal for secondary development in high-speed data acquisition, image processing, industrial control, and more.
Applications
● Communication
● Image and video processing
● High-speed Data Acquisition & Analysis
● Network information security
● Industrial Control
Key Features
- ● PANGO Titan-2 PG2T390H
● Pluggable module with 2 x board-to-board connectors
● 2 x 1GB GByte (32-bit) DDR4 SDRAM
● 2 x 256Mb QSPI Flash
● 16 pairs High-speed Transceivers
● 2 x 200MHz Differential Clocks - ● I/Os◆ 98 HPIO
◆ 54 HDIO● Work temperature range of -40°C to 85°C
● 12V single supply
● Dimensions: 80 x 60mm form factor
Module Features
Featuring the Pango Titan3 PG3T500-6IFFBG676

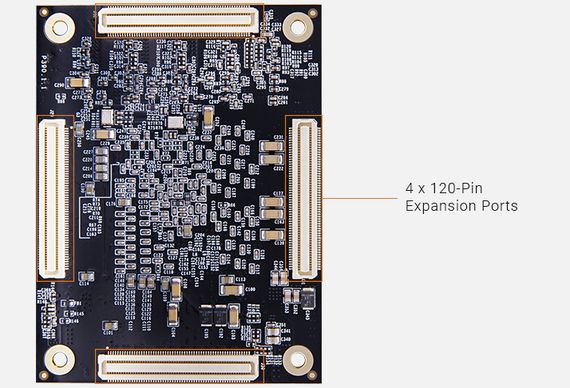

If you want to design a base board based on this Logos System-on-Module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Cooling FAN is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
* We have Titan2 development boards AXP500F that uses this Titan3 module, to get started with development straight out of the box.
What's Inside the Box
ALINX Pango Titan3 PG3T500 System-on-Module/SoM
| SoM | 1 |
|---|
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
