Product Description

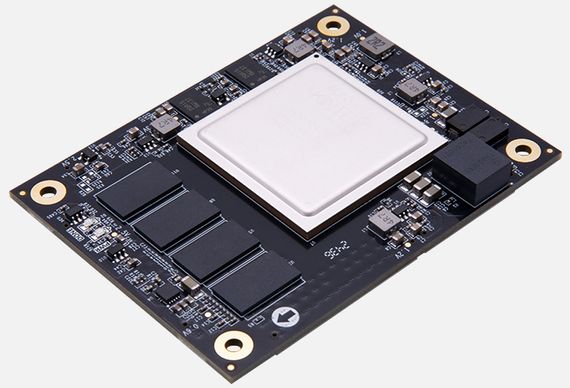

The ACKU040/ACKU060/ACKU095 FPGA System-on-Module (SoM) combines high-end AMD Xilinx Kintex UltraScaleâ„¢ series device with fast DDR4 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.
Applications
Data Center
â— Network Acceleration
â— Storage Acceleration
Industrial, Science, Medical
â— Medical Imaging Backhaul
â— Machine Vision
Wired Communications
â— PON Access
â— Optical Transport Network
Wireless Communications
â— Radio
â— Basebandn
Key Features
- â— AMD/Xilinx Kintex Ultrascale :
â—† 20nm FPGA fabric
â—† Up to 1.5M system logic units with Gen2 3D ICsc
â—† 8.2 TeraMAC DSP Compute Performance

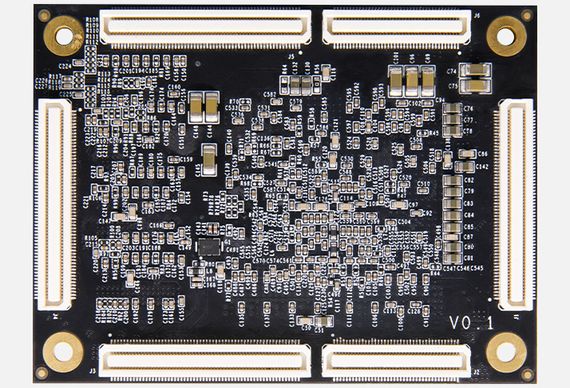

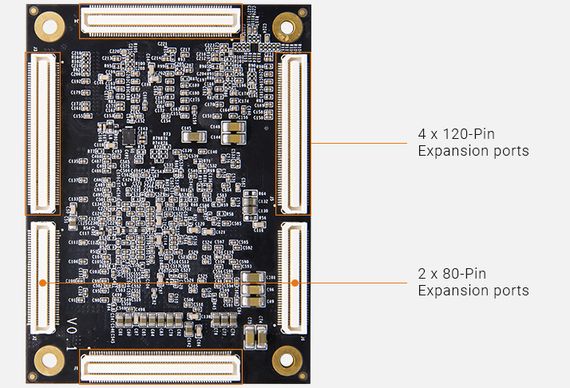

â—† Enhanced system logic unit packaging reduces dynamic power consumptionâ— Pluggable module with 6 x Panasonic board-to-board connectors
â— 4 GByte (64-bit) DDR4 SDRAM
â— 2 x 16 MB QSPI Flash
◠PCIe® Gen3 x8 - ◠Gigabit transceivers
â—† 20 x GTH, up to 16.3 Gbpsâ— User I/Os
◆ 359 FPGA IOs(104 HR IOs + 255 HP IOs)(ACKU095 only 52 HR IOs) ◠Work temperature range of -40°C to +85°C
â— 12V single supply
â— Dimensions: 80 x 60 mm form factor
What's Inside the Box
ALINX AMD Xilinx Kintex UltraScaleâ„¢ XCKU095 FPGA System-on-Module/SoM
| Kintex UltraScale SoM | 1 |
|---|

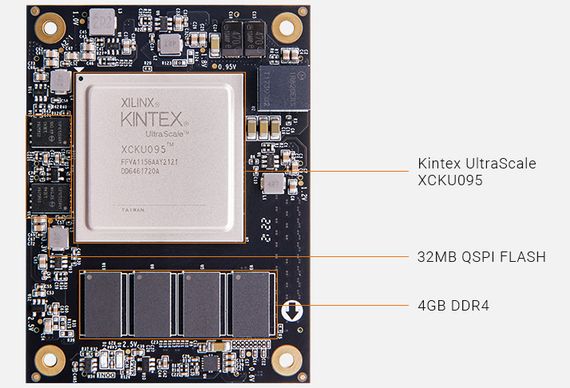

Module Features

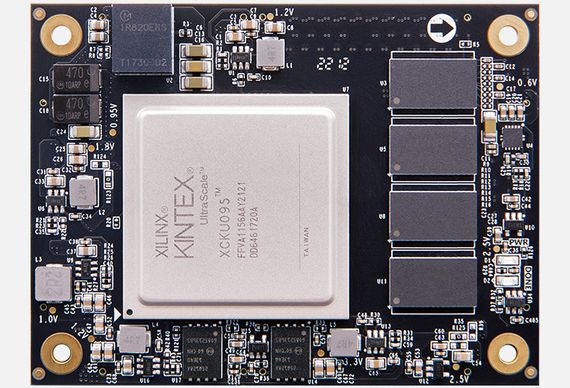

Featuring the AMD/Xilinx Kintex Ultrascale XCKU095-1FFVA1156I
* If you want to design a base board based on this Kintex Ultrascale FPGA System-on-Module, you need to purchase AXK680337YG and AXK6A2337YG high-speed Board to Board Connectors, 80 Pins and 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and modules – it is low-profile and covers the whole module surface.
* We have Kintex Ultrascale development boards AXKU095 that uses this Kintex Ultrascale module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
