Testboard for the Trenz Electronic MPSoC module TE0865 (TEBT0865-01)

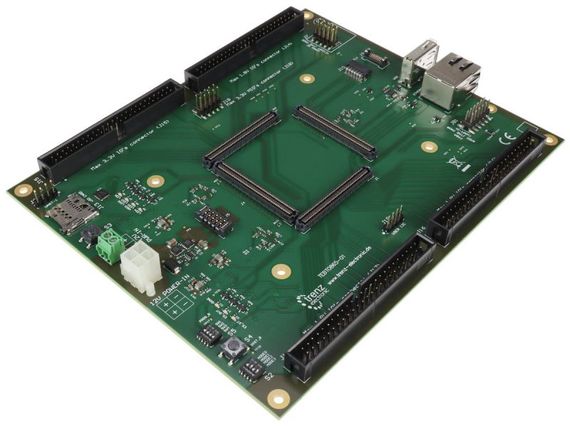

Testboard for the Trenz Electronic MPSoC module TE0865, equipped with a USB A, Ethernet RJ45, Firefly, SD Card holder, Samtec AcceleRate HD B2B. size: 14.5 x 18 cm
Référence de l’article: VAR-827003702
Numéro de produit du fabricant: TEBT0865-01
Code douane: 84718000
Article situé / expédié de : Riedlingen, Allemagne
All important changes can be found in the Product Change Notification (PCN).
The Trenz Electronic TEBT0865-01 is a testboard for the TE0865 MPSoC module from Trenz Electronic. The testboard is mainly used to hold a TE0865 and offers the below mentioned interfaces for further interactions.
Key Features
Interfaces
- USB-A connector
- Gigabit RJ45 Jack
- SD Card Holder
- 4 xSamtec AcceleRate HD High-Density B2B connectors
- Firefly connector
- Connector forXMOD FTDI JTAG Adapter (JTAG und UART)
- Connector for TEI0004 (JTAG)
- UART Header
- I2C Header
- GPIO Headerwith 6 x GPIO
- 3 xconnectorwith 12 I/O (VCCOmax = 1,8 V)
- Connectorwith 12 I/O (VCCOmax = 3,3 V)
On Board
- 2 x DIP switches
- 2 x Push buttons
- Pin Headers
- Voltage Regulators
Power
- 12.0 V input supply voltage
Dimension
- 14.5x 18 cm
Other assembly options for cost or performance optimization plus high volume prices available on request.
Required Hardware
- Trenz Electronic MPSoC module TE0865 with Xilinx Zynq UltraScale+
Scope of Delivery
- 1 x TEBT0865-01 Trenz Electronic Testboard for module TE0865
Additional Information
- Manufacturer's article number: TEBT0865-01
- Trenz Electronic TEBT0865 Wiki
- Support Forum
All modules produced by Trenz Electronicare developed and manufactured in Germany.
| Caractéristique technique | Valeur |
|---|---|
| ID de l’art. | 103216 |
| État | |
| ID de l'ancien article | 01967b9f5a4f70deaa737dade7ffcb5b |
| Modèle | TEBT0865-01 |
| Fabricant | |
| Pays de fabrication | Allemagne |
| Contenu | 1 pièce |
| Poids | 270 g |
