SoC-Module with AMD Zynq 7020-1Q, 1 GByte DDR3L, 8 GByte eMMC, 4 x 5 cm (TE0720-04-61Q33MA)
AMD Automotive XA7Z020-1CLG484Q, 1 GByte DDR3 SDRAM, 32 MByte SPI Flash, Ethernet, USB, 8 GByte e.MMC, size: 4 x 5 cm
Référence de l’article: VAR-827003674
Numéro de produit du fabricant: TE0720-04-61Q33MA
Code douane: 84718000
Article situé / expédié de : Riedlingen, Allemagne
The predecessor of this article is TE0720-03-61Q33MA. All changes are in the Product Change Notification (PCN).
The Trenz Electronic TE0720-04-61Q33MA is an industrial-grade SoC module integrating a AMD Automotive Zynq 7020, a Gigabit Ethernet transceiver, 1 GByte DDR3 SDRAM,32 MByte Flash memory for con?guration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of con?gurable I/O's is provided via rugged high-speed stacking strips.
All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.
Key Features
- AMD Zynq XA7Z020-1CLG484Q (Automotive)
- Rugged for high shock and vibration
- ARM dual-core Cortex-A9 MPCore
- 10/100/1000 tri-speed Gigabit Ethernet transceiver (PHY), SGMII accessible on a board-to-board connector
- USB 2.0 high speed ULPI transceiver
- 1GByte (32-bit) DDR3 SDRAM
- 32MByte QSPI Flash memory (for configuration and operation)
- 8GByte e.MMC (optional up to 32GByte)
- Plug-on module with 2 x 100-pin and 1 x 60-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (regular 4 mm)
- 152 FPGA I/O's (75 LVDS pairs possible) and 14 MIO's available on board-to-board connectors
- On-board high-efficiency DC-DC converters
- 4.0A x 1.0V power rail
- 3.0 A x 1.5V power rail
- 3.0 A x 1.8V power rail
- System management and power sequencing
- eFUSE bit-stream encryption
- AES bit-stream encryption
- Valid MAC Address and 2K serial EEPROM
- SHA-256 authentication chip with unique serial number
- RTC, temperature compensated
- 3 user LEDs
- Evenly-spread supply pins for good signal integrity
Other assembly options for cost or performance optimization plus high volume prices available on request.
Recommended Software
Vivado Standard Edition (free version)
The Vivado StandardEdition is the FREE version of the Vivado design suite.VivadoStandard delivers instant access to some basic Vivado features and functionality at no cost.
Overview Vivado Standard and Enterprise EditionDevelopment Support
There are different base boards available for this module.
Latest documentation, design support files and reference designs with source files are available for download free of charge.
Scope of Delivery
- 1 x TE0720-04-61Q33MA Trenz Electronic 4 x 5 cm SoC module with AMD Zynq 7020 (Automotive)
- 8 x screws
- 4 x bolts
Additional Information
- Manufacturer's article number: TE0720-04-61Q33MA
- Trenz Electronic TE0720 Wiki
- Samtec LSHM Razor Beam, High-Speed Hermaphroditic Terminal/Socket Strips, regular 4 mm,
overview, compatibility, mating heights and speed rating: Wiki, mounted on every 4 x 5 cm module of Trenz Electronic - Support Forum
All modules produced by Trenz Electronicare developed and manufactured in Germany.

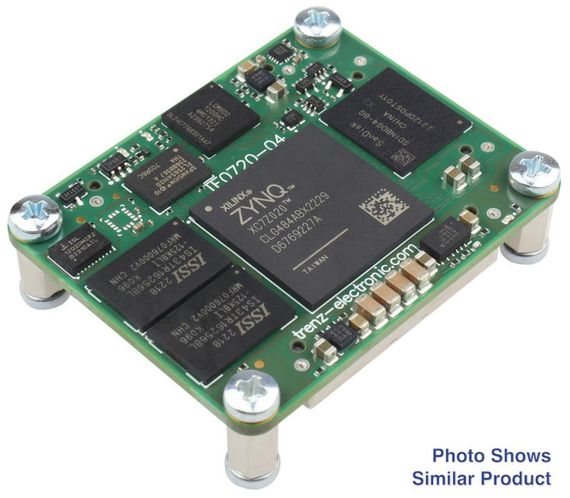

The online pictures of this product are not a legally binding offer, but are symbol pictures for illustration and presentation only.
| Caractéristique technique | Valeur |
|---|---|
| ID de l’art. | 103188 |
| État | |
| ID de l'ancien article | 01968567ae6972d49df328acd9e025bb |
| Modèle | TE0720-04-61Q33MA |
| Fabricant | |
| Pays de fabrication | Allemagne |
| Contenu | 1 pièce |
| Poids | 96 g |
