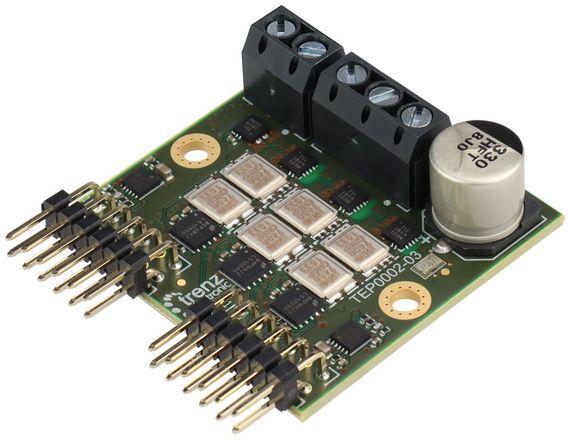

Pmod compatible motor driver board, 15A 0-30V (TEP0002-03)

15A 0-30V BLDC motor driver board, compatible with Digilent's Pmod interfaces, dimension 40 x 40 mm

Référence de l’article: VAR-827003639

Numéro de produit du fabricant: TEP0002-03

Code douane: 84718000

Disponible pour expédition immédiate: 0
Délais d'exécution 3 jours. Pour les commandes d'une valeur totale nette inférieure à 70 euros, nous facturerons des frais de traitement de 20 euros.

Article situé / expédié de : Riedlingen, Allemagne

117,03 EUR *
Contenu 1 pièce
* Hors TVA hors Frais de livraison

We have improved our product! All changes are in the Product Change Notification (PCN).


This product is not always in stock, but will be produced on customer order (on demand).
Please ask for any minimum quantities.

The predecessor of this article is TEP0002-02. All changes are in the Product Change Notification (PCN).

The Trenz Electronic TEP0002 is a Pmod compatible motor driver board and good for developing BLCD or CD motor driving software.

Key Features

  • Compatible with Digilent's Pmod interfaces
  • 15 A 0-30 V BLDC motor driver board
  • Dimension 40 x 40 mm
  • Dimension including connectors 47.7 x 40 mm
  • 40 V 217 A Infineon Mosfets
  • Seperate 2MSPS 12bit ADC for simultaneous sampling current or voltage
  • ACS711 current sensors
  • Automatic dead time generation using LM5105 half bridge drivers
  • Supply current and voltage monitoring
  • Mosfet drivers supply from Pmod connectors

Other assembly options for cost or performance optimization plus high volume prices available on request.

Scope of Delivery

  • 1 x TEP0002-03 Trenz Electronic Pmod compatible motor driver board

Additional Information

All modules produced by Trenz Electronicare developed and manufactured in Germany.
ID de l’art. 103153
État
ID de l'ancien article 0196903947f673cfbed3060de076be3f
Modèle TEP0002-03
Fabricant
Pays de fabrication Allemagne
Contenu 1 pièce
Poids 89 g
