This product is not always in stock, but will be produced on customer order (on demand).
Please ask for any minimum quantities.

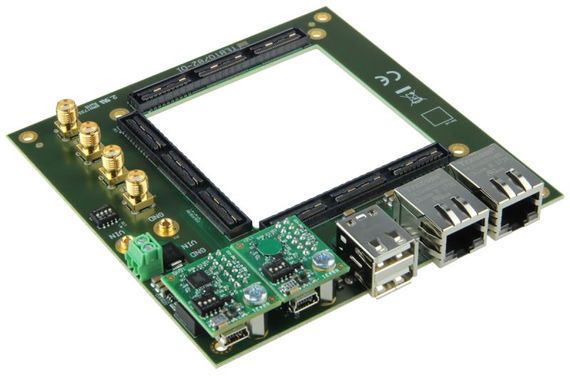

Carrier Board for TE0782 andTE0783 SoC. Most Board to Board IO pins looped back for simple I/O test.Module bottom side is accessible for measurements.

Overview and supported functionality for 8.5 x 8.5 cm SoM carriers.

Features

3 x Samtec ASP-122953-01 160-pin stackingcompatible to TE0782
2 mm MC LB2-A solder-in and TE1.5/2-3.5H plug connectors for power supply (12 V Input)
4 SMA connectors for MGT (1xTX 1xRX)
2 x 12 Pin Header for XMOD
1 xDIP-switch for Module CPLD Access
2x RJ45 connector
1 x USB A connector (2 stacked)
Assembled with two XMOD FTDI JTAG Adapter, TE0790 and TE0790-xxL (compatible with/independent from Xilinx tools)
Power regulators for 5 V and 3.3 V
Size 115 x 115 mm
Two pre-assembled TE0790 XMOD FTDI JTAG adapters

Scope of Delivery

1 x TEBT0782-01 carrier boardforTrenz Electronic TE0782 and TE0783 SoC

Additional Information

Manufacturer's article number: TEBT0782-01
Trenz Electronic TEBT0782 Wiki
Support Forum

All modules produced by Trenz Electronicare developed and manufactured in Germany.

Caractéristique technique	Valeur
ID de l’art.	102920
État
ID de l'ancien article	01968567f1b872f5bd20c76dc5ea7f72
Modèle	TEBT0782-01
Fabricant	Trenz Electronic GmbH
Pays de fabrication	Allemagne
Contenu	1 pièce
Poids	194 g
