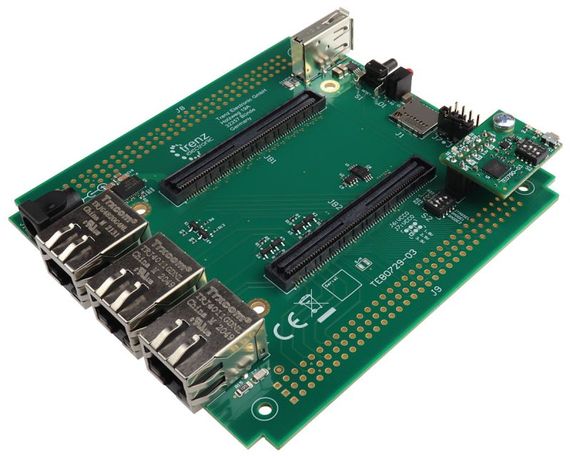

Carrier board for TE0729 Zynq-7020 SoC with USB-A-Host Connector (TEB0729-03A)

__

This product is offered at a discount and is valid while stocks last!

__

The Trenz Electronic TEB0729 carrier board was especially designed and developed for the use of Trenz Electronic module TE0729. It provides low-cost connection and extension to Trenz Electronic micromodules from the TE0729 series.

Features

• Barrel jack for 5V power supply
• 2 x RJ45 10/100-BaseT Ethernet MagJack with 2 integrated LEDs
• 1 x RJ45 Gigabit Ethernet MagJack with 2 integrated LEDs.
• 2 x Configuration EEPROM's, connected to SoM's IC interface
• XMOD compatible header to connect the TE0790 USB 2.0 adapter board
• JTAG and UART interface over XMOD header
• MicroSD Card socket, can be used to boot system
• USB 2.0 socket
• 4-bit DIP switch for SoM configuration (SoM's JTAG access and Bootmode)
• VG96 connector soldering-pads J8 for access to SoM's PL-IO-bank-pins, usable as LVDS-pairs
• VG96 connector soldering-pads J9 for access to further interfaces and IO's of the SoM
• 1 x user LED (red)
• 1 x user push-button routed to SoM (Reset function at standard configuration)
• Pin headers to set PL-IO-bank's VCCIO with jumper

Scope of Delivery

• 1 x TEB0729-03A Trenz Electronic carrier board for TE0729 SoC Module

Including pre-assembled accessories

• 1 x XMOD FTDI JTAG adapter TE0790-03, compatible withAMD tools

Required Hardware

• Switching Power Supply 5V DC

Additional Information

• Manufacturer's article number: TEB0729-03A
• Trenz Electronic TEB0729 Wiki
• Support Forum
