The predecessor of this article is TE0820-05-3BI21ML. All changes are in the Product Change Notification (PCN).

Note: Obsolescence management, memory was changed from K4A8G165WB-BIRC to new revision K4A8G165WC-BITDTCV.

This module is identical to variant TE0820-05-3BE81MA except the lower 2.5 mm Samtec connectors.

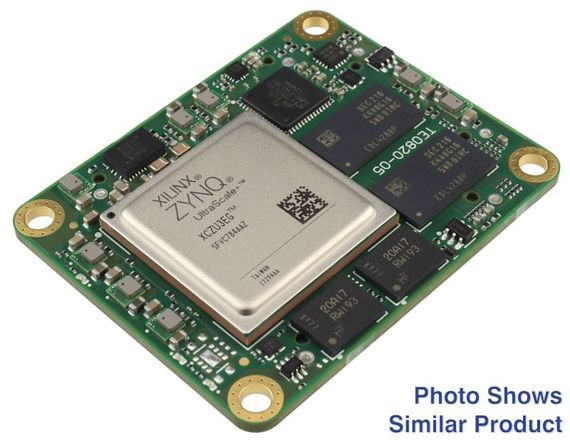

The Trenz Electronic TE0820-05-3BI81ML is an industrial-grade MPSoC module integrating a AMD Zynq UltraScale+ ZU3EG,2 GByte DDR4 SDRAM, 128 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.

All parts are at least industrial temperature range of -40C to +85C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

Key Features

FPGA
- Device: AMD/Xilinx Zynq UltraScale+ XCZU3EG-1SFVC784I
- Speedgrade: -1
- Temperature range:Industrial
- Package: SFVC784
- Graphic Processing Unit (GPU)

RAM / Storage
- 2GByte DDR4 SDRAM
- 128 MByte QSPI Boot Flash in dual parallel mode
- 8 GByte e.MMC Memory
- MAC address serial EEPROM with EUI-48 Node Identity

On Board
- Lattice MachXO2 CPLD
- Programmable quad PLL clock generator PLL for PS GTR clocks
- Hi-speed USB2 ULPI Transceiver
- 4 x LEDs

Interface
- - Plug-on module with 2 x 100-pin and 1 x 60-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (regular 4 mm)
  - Gigabit Ethernet transceiver PHY
  - Hi-speed USB2 ULPI transceiver with full OTG support
  - Graphic Processor Mali-400 MP2
  - 132 x HP PL I/Os (3 banks)
  - 14 x PS MIOs (6 of the MIOs intended for SD card interface in default configuration)
  - 4 x serial PS GTR transceivers
  - Four high-speed serial I/O (HSSIO) interfaces supporting following protocols:
    - PCI Express interface
    - SATA 3.1 interface
    - DisplayPort interface with video resolution up to 4k x 2k
    - USB 3.0 specification compliant interface implementing a 5 Gbit/s line rate
    - 1 GB/s serial GMII interface

Power
- All power supplies on board

Dimension
- 4 x 5 cm

Other assembly options for cost or performance optimization plus high volume prices available on request.

Recommended Software

Vivado Standard Edition (free version)

The Vivado StandardEdition is the FREE version of the Vivado design suite.VivadoStandard delivers instant access to some basic Vivado features and functionality at no cost.

Overview Vivado Standard and Enterprise Edition

Development Support

There are different base boards available for this module.

Latest documentation, design support files and reference designs with source files are available for download free of charge.

Scope of Delivery

1 x TE0820-05-3BI81ML Trenz Electronic MPSoC module with AMD Zynq UltraScale+ ZU3EG, low profile connectors (2.5 mm)

Additional Information

Manufacturer's article number: TE0820-05-3BI81ML
Trenz Electronic TE0820 Wiki
Samtec LSHM Razor Beam, High-Speed Hermaphroditic Terminal/Socket Strips, low profile 2.5 mm,
information concerning mating heights: Wiki, mounted on every 4 x 5 cm module from us marked with"LP" or "low profile".
Support Forum

All modules produced by Trenz Electronicare developed and manufactured in Germany.

Technical characteristic	Value
Item ID	103098
Condition	New
Legacy item ID	01967b9f2c3b72888e55d64889faac7c
Model	TE0820-05-3BI81ML
Manufacturer
Manufacturing country	Germany
Content	1 piece
Weight	89 g
Customs tariff number	84718000
