EDPS Power Stage | MIRIFICA Store

This product is not always in stock, but will be produced on customer order (on demand).
Please ask for any minimum quantities.

The predecessor of this article is TEC0053-03. All changes are in the Product Change Notification (PCN).

Changes within Revision 04 are included in the Product Change Notification (PCN).

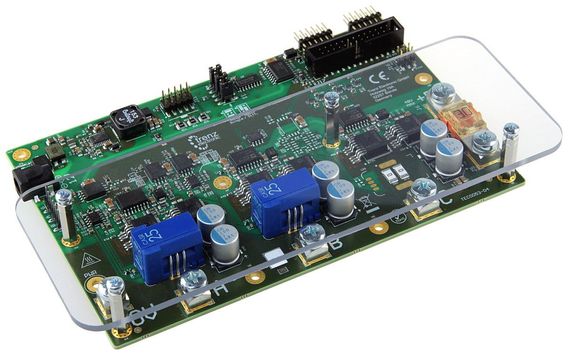

An Electric Drive Power Stage Board, needed for the EDDP Kit.

Key Features

Evaluation of Motor Control with a suitable Controller Board
Power option up to 48V and 30A main supply current
MOSFET power stage supporting 3-phase BLDC motors
Current measurement on 2-phases (3 phase measurement is optional)
On-board temperature sensor and 1-wire bus connector for additional sensors
Encoder input capable of receiving both single ended and differential signals

Other assembly options for cost or performance optimization plus high volume prices available on request.

Scope of Delivery

1 xTEC0053-04 Trenz Electronic EDPS Power Stage
1 x fuse 58V 30A slow bolt mount
1 xTEC0053 - protection cover
4 x bolts M3 20 mm
8 x screws M3 x 6

Additional Information

Manufacturer's article number: TEC0053-04
EDDP KitQuickStartGuide
EDPS User Manual
Support Forum

All modules produced by Trenz Electronicare developed and manufactured in Germany.

Technical characteristic	Value
Item ID	102954
Condition	New
Legacy item ID	01968fbd152d706e80a2e4bc995acc80
Model	TEC0053-04
Manufacturer	Trenz Electronic GmbH
Manufacturing country	Germany
Content	1 piece
Weight	370 g
Customs tariff number	84718000
