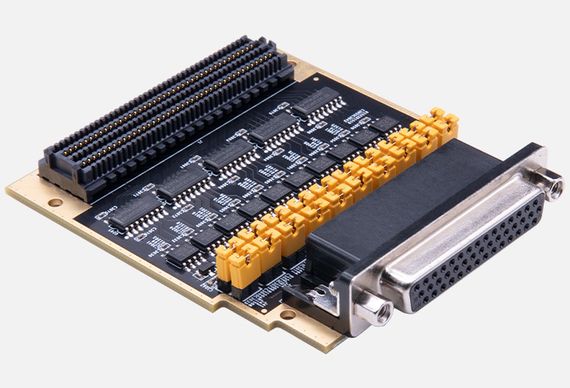

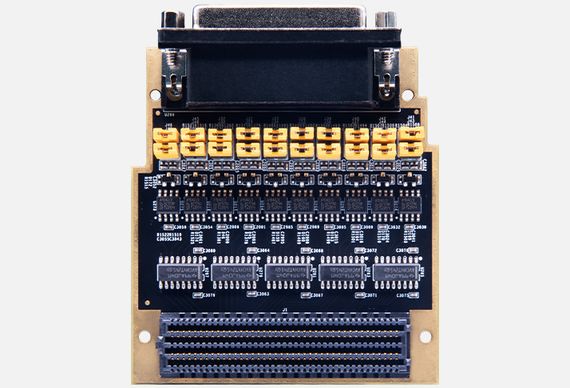

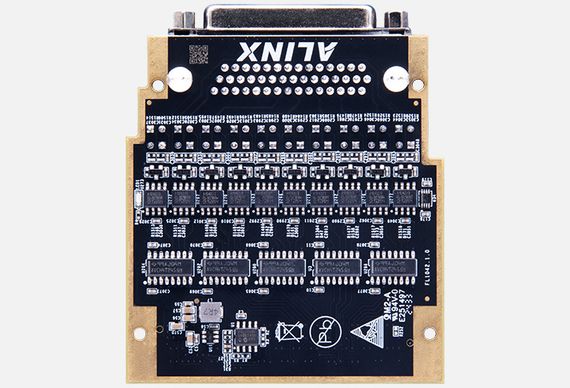

Alinx FL1042 20 channel CANFD communication module FMC card
The FL1042 is a 20-channel CAN FD (Controller Area Network with Flexible Data-Rate) communication module designed for high-speed, high-reliability data transmission. It connects to external signals via a DB44 female header connector and supports jumper-configurable termination resistors for CAN FD buses
Item number VAR-827003369
Manufacturer Product Number: FL1042
Taric/custom code:
Item located in and dispatched from: Riedlingen, Germany
Product Description
The FL1042 is a 20-channel CAN FD (Controller Area Network with Flexible Data-Rate) communication module designed for high-speed, high-reliability data transmission. It connects to external signals via a DB44 female header connector and supports jumper-configurable termination resistors for CAN FD buses
FL1042 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.
Key Features
â— FMC LPC connector
â— Channels: 20 CAN FD
â— Connector: DB44 female headerâ— Chipset: NXP TJA1042T/3/1J
â— Dimensions: 76.5x 69 mm form factor
What's Inside the Box
| FMC Cards | 1 |
|---|
| Technical characteristic | Value |
|---|---|
| Item ID | 102885 |
| Condition | New |
| Legacy item ID | |
| Model | FL1042 |
| Manufacturer | |
| Manufacturing country | Germany |
| Content | 1 piece |
| Weight | 1000 g |
| Customs tariff number |
Module Features
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
