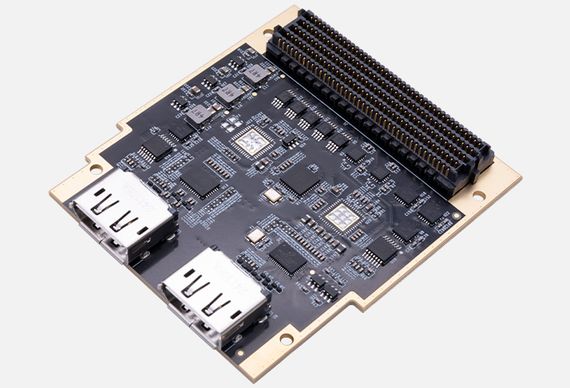

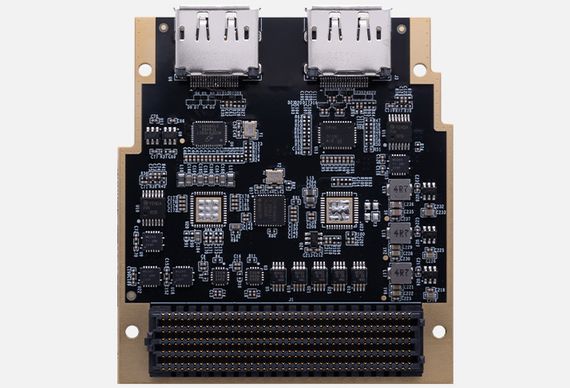

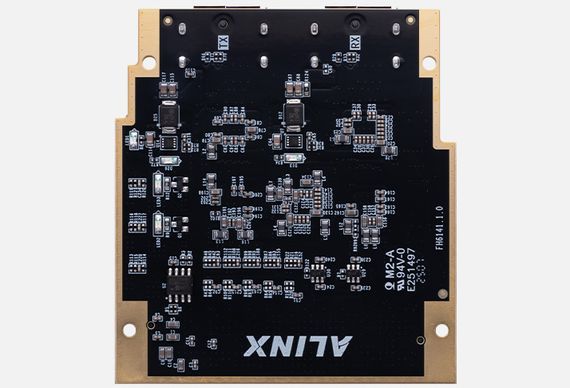

Alinx FH6141 4K DisplayPort1.4 Video Input/Output Module HPC FMC Card
The FH6141 is an FMC-compatible interface module designed to convert one DisplayPort (DP) input and one DisplayPort output, compliant with the DP1.4 standard. Featuring 4-lane configuration, this module supports data rates up to ‌8.1Gbps per lane‌, delivering high-bandwidth video signal transmission for applications requiring ultra-high resolution and refresh rates.
Item number VAR-827003382
Manufacturer Product Number: FH6141 V1.0
Taric/custom code:
Item located in and dispatched from: Riedlingen, Germany
Product Description
The FH6141 is an FMC-compatible interface module designed to convert one DisplayPort (DP) input and one DisplayPort output, compliant with the DP1.4 standard. Featuring 4-lane configuration, this module supports data rates up to ‌8.1Gbps per lane‌, delivering high-bandwidth video signal transmission for applications requiring ultra-high resolution and refresh rates.
FH6141 has a standard FMC HPC interface that can be connected to the ALINX FPGA carrier board for use.
Key Features
- â— Chip model: input MCDP6000, output SN65DP141
â— DisplayPort: 2 x DP 1.4 (1 x DP input + 1 x DP output)
â— Resolution: 4K@60 fps - â— Speed: Supports up to 8.1 Gbps
â— FMC HPC connector
â— Dimensions: 76.5x 69 mm form factor
What's Inside the Box
| FMC Cards | 1 |
|---|
| Technical characteristic | Value |
|---|---|
| Item ID | 102898 |
| Condition | New |
| Legacy item ID | |
| Model | FH6141 V1.0 |
| Manufacturer | |
| Manufacturing country | Germany |
| Content | 1 piece |
| Weight | 1000 g |
| Customs tariff number |
Module Features
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
