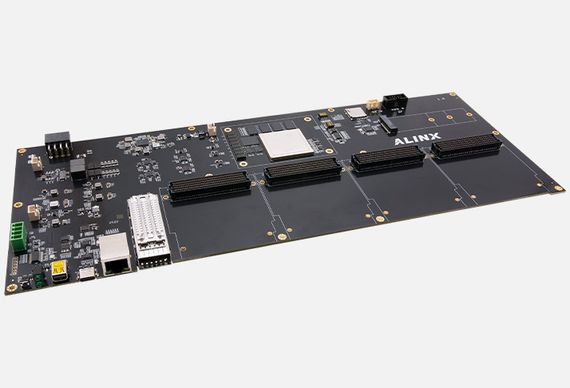

Product Description
The BZ10 development board, equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC (XCZU7EV), delivers high-performance capabilities including 4GB DDR4 SDRAM (2400Mbps), 32GB eMMC Flash, and 512Mb QSPI Flash. It features extensive interfaces: 4× FMC HPC connectors , PCIe Gen2×1 via M.2 (5Gbps for SSD storage), DisplayPort (4K@30Hz video output), QSFP+ fiber optic (40Gbps), USB 3.0 Type-C, Gigabit Ethernet, and Micro SD support.
Applications
â— Artificial Intelligence
â— Automotive
â— AV Broadcasting
â— Deep learning
â— Digital Signal Processing
â— 5G Wireless and Wire Communication
â— Data Centers
â— Drive / Motion Control
â— Industrial Internet of Things
â— Cloud Computing Security
â— Machine Vision
â— Medical Endoscopy
â— Hardware Security Acceleration

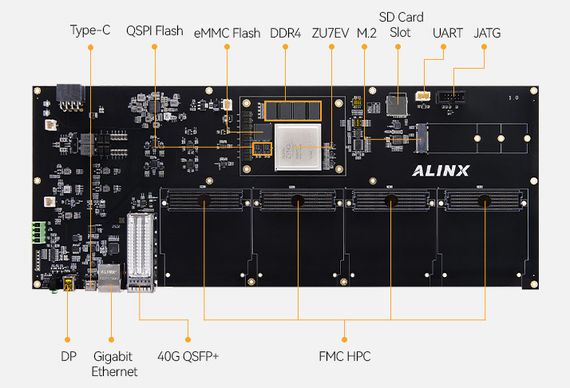

Key Features
- â— AMD/Xilinx Zynqâ„¢ Ultrascale+â„¢ MPSoC ZU7EV :
◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
◆ ARM® dual-core Cortex™-R5F up to 533 MHz
â—† Mali-400 MP2 GPU
â—† H.264 / H.265 Video Codec
â—† 16nm FinFET+ FPGA fabric
â— 4 GByte (64-bit) DDR4 SDRAM on PS
â— 64 MB QSPI Flash
â— 32 GB eMMC Flash - â— 4 x FMC HPC
â— 1 x Display Port (4K 30Hz/1080P 60Hz video)
â— 1 x 40G QSFP+
â— 1 x NVMe M.2 (PCIE Gen2 x1)
â— 1 x PS Gigabit Ethernet
â— 1 x USB 3.0 Type-C
â— 1 x UART (USB to UART)
â— 1 x JTAG
â— 1 x EEPROM 24LC04
â— 1 x Micro SD
â— LED (1 x pwr + 1 x done + 2 x USER) + KEY (1 x RST)
â— 12V single supply
â— Dimensions: 385 x 155 mm form factor
What's Inside the Box
ALINX AMD Xilinx Zynqâ„¢ UltraScale+â„¢ MPSoC XCZU7EV development board and Some accessories

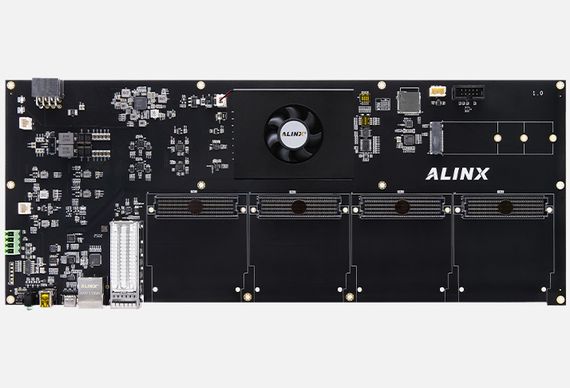

The Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
| Development Board | 1 | Heatsink Kit (preinstalled) | 1 |
|---|---|---|---|
| 12V Power Adapter | 1 | TF Card | 1 |
| Mini USB Cable | 1 | Card Reader | 1 |
| USB Downloader Cable / set | 1 |

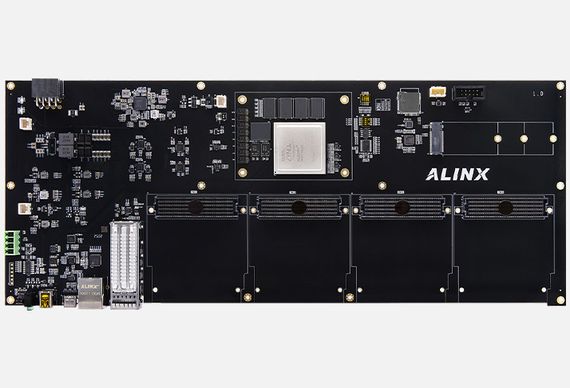

Development Board Features
Featuring the AMD/Xilinx's Zynqâ„¢ UltraScale+â„¢ MPSoC XCZU7EV-2FFVC1156I Adaptive SoC
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynqâ„¢ UltraScale+â„¢ MPSoC based application.
