Product Description

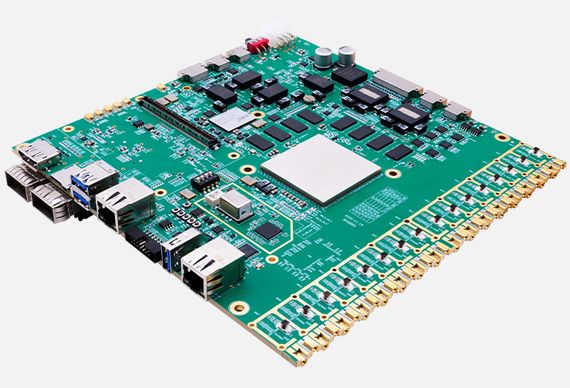

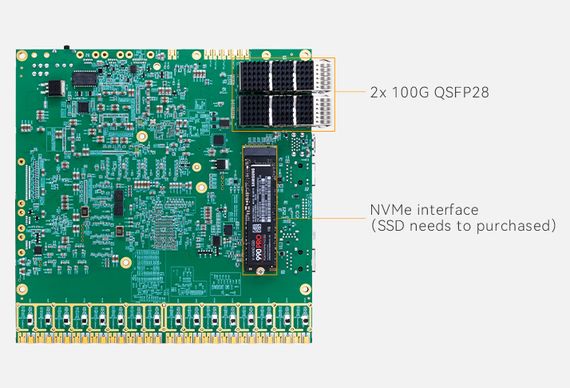

The AXW49 development board utilizes the AMD Zynq UltraScale+ RFSoC Gen3 XCZU49DR FPGA as its core processor. It features 16-channel 14-bit ADC ports with a maximum sampling rate of 2.5 GSPS and 16-channel 14-bit DAC ports with a maximum sampling rate of 9.85 GSPS. This configuration simplifies the RF signal chain, maximizes I/O channel density without bandwidth compromise, and leverages heterogeneous processing capabilities (combining FPGA logic with quad-core APUs and dual RPUs) to reduce power consumption. High-speed connectors extend functionality for AD/DA clocks, HDIO (High-Density I/O), MIO (Multiplexed I/O), and GTY/GTR transceiver buses (e.g., via QSFP28 optical ports and NVMe interface), with flexible IO voltage control supporting multiple levels (1.8V, 3.3V) across different banks.
Supporting large-scale MIMO radio, 5G baseband, fixed wireless access, and cable access in communication applications; testing and measurement as well as satellite communication, and similar high-performance RF scenarios.
Applications
â— Wireless access (5G/LTE, FWA)
â— Cable access (broadband/data services)
â— Test and measurement
â— Radar signal processing
â— Satellite communication
â— Other RF-intensive applications

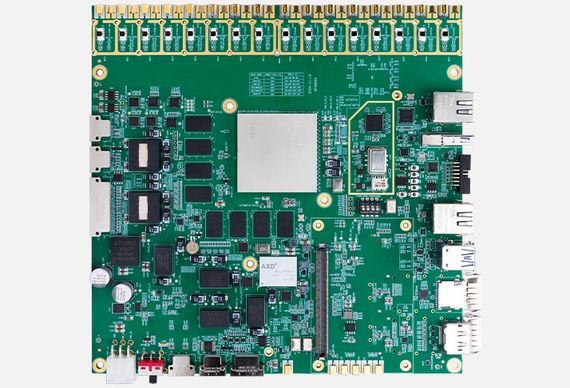

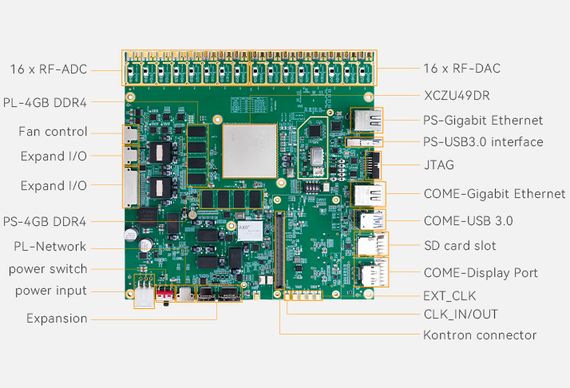

Key Features
- â— AMD/Xilinx Zynqâ„¢ Ultrascale+â„¢ RFSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.5GHz
◆ ARM® dual-core Cortex™-R5F up to 600MHz
â—† 16nm FinFET+ FPGA fabricâ— 4GB DDR4 SDRAM on PS
â— 4GB DDR4 SDRAM on PL
â— 256 MB QSPI Flash
â— 2 x QSFP28 Optical (100G)
â— RF SMBs
â—† 16 x 14bit RF-ADC @ 2.5 GSPS
â—† 16 x 14bit RF-DAC @ 9.85 GSPS - â— 1 x M.2 Interface
â— 1 x USB 3.0 Port
â— 3 x Gigabit Ethernet
â— 1 x JTAG
â— 1 x Micro SD
â— EEPROM: 4-Kbit I2C Serial EEPROM
â— 4 x LED
â— 32x IO
â— 12V single supply
â— Dimensions: 200 x 200 mm form factor
What's Inside the Box
ALINX AMD Xilinx Zynqâ„¢ UltraScale+â„¢ RFSoC XCZU49DR development board and Some accessories
Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
| Development Board | 1 | Heatsink Kit (preinstalled) | 1 |
|---|---|---|---|
| SD card | 1 | Network Adapter | 1 |
| Type-C cable | 1 | Power Adapter | 1 |
| USB flash drive | 1 | SMA cable | 1 |

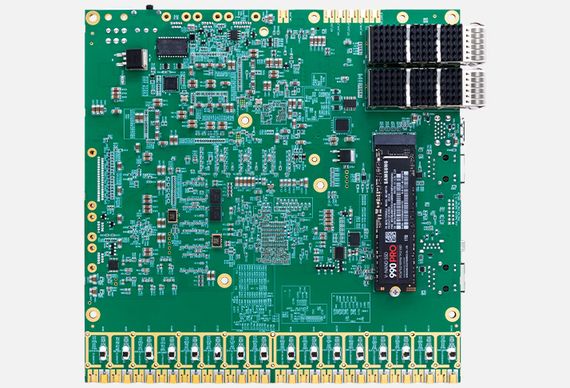

Development Board Features
Featuring the AMD/Xilinx's Zynqâ„¢ UltraScale+â„¢ RFSoC XCZU49DR-2FFVF1760 Adaptive SoC
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynqâ„¢ UltraScale+â„¢ RFSoC based application.
