Product Description

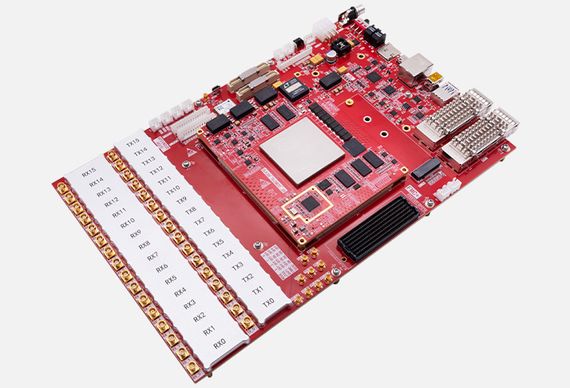

The AXRF49 development kit comprises the ACRF49 SoM and the base board, linked by high-speed connectors (32Gbps per channel). The ACRF49 SoM features Xilinx's Zynq UltraScale+ RFSoC Gen3 XCZU49DR FPGA, supporting 16-channel 14-bit RF-ADC (2.5GSPS max) and 16-channel 14-bit RF-DAC (9.85GSPS max). This integration simplifies the RF signal chain, maximizes I/O density without sacrificing bandwidth, leverages heterogeneous processing, and reduces power consumption. Connectors extend RF-ADC/RF-DAC interfaces, clocks, MIO, GTY transceivers, and support configurable IO voltages on specific banks.
Supporting 5G baseband, cable TV access, and wireless communication applications; test and measurement, radar/early warning systems, satellite positioning, and other high-performance RF scenarios.
Applications
â— Wireless access
â— Cable TV access
â— Test and measurement
â— Early warning/radar
â— Other high-performance RF applications
Key Features
System-on-Module
â— AMD/Xilinx Zynqâ„¢ Ultrascale+â„¢ RFSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.5GHz
◆ ARM® dual-core Cortex™-R5F up to 600MHz
â—† 16nm FinFET+ FPGA fabric
â—† 16-channel 14-bit RF-ADC, up to 2.5GSPS
â—† 16-channel 14-bit RF-DAC, up to 9.85GSPSâ— Pluggable module with a 56Gbps high-speed connector
â— Single channel 5GB DDR4 SDRAM ECC on PS
â— Dual channel 5GB DDR4 SDRAM on PL
â— 128 MB QSPI FlashBase Board
â— 2 x QSFP28 Optical (40G/100G)
â— 1 x FMC+
â— RF SMBs
â—† 16 x 14bit RF-ADC @ 2.5 GSPS
â—† 16 x 14bit RF-DAC @ 9.85 GSPSâ— 1 x M.2 Interface
â— 1 x MINI DisplayPort
â— 1 x GPS
â— 1 x USB 3.0 OTG Interface
â— 1 x Gigabit Ethernet
â— 1 x JTAG/UART (USB-C)
â— 1 x Micro SD
â— EEPROM: 4-Kbit I2C Serial EEPROM
â— 4 x LED
â— 1 x KEY (1 x RESET )
â— 12V single supply
â— Dimensions: 277 x 180 mm form factor
What's Inside the Box
ALINX AMD Xilinx Zynqâ„¢ UltraScale+â„¢ RFSoC ZU49DR development board and Some accessories

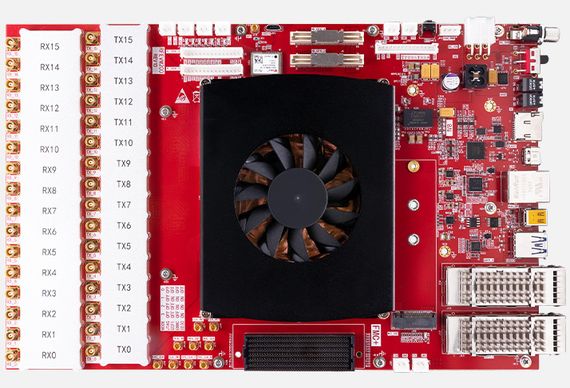

Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
| System-on-Module | 1 | Base Board | 1 |
|---|---|---|---|
| SMA cable | 8 | MCX-SMA RF cable | 16 |
| MMCX-SMA RF cable | 4 | 12V power supply | 1 |
| power line | 1 | USB3.0-cable | 1 |
| Network cable | 1 | TF card | 1 |
| card reader | 1 | CD materials | 1 |

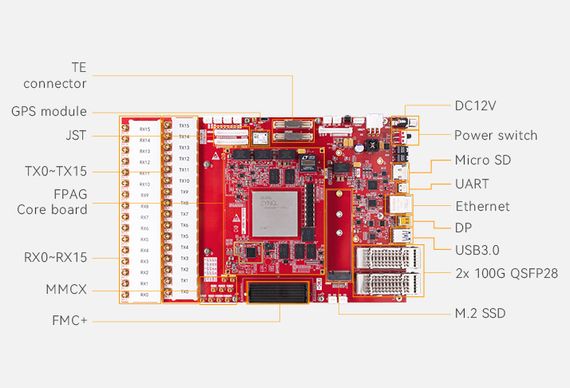

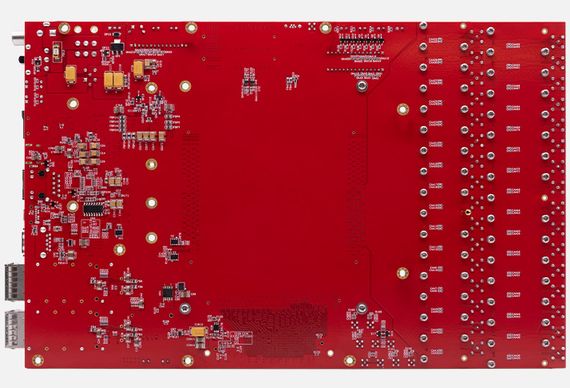

Development Board Features

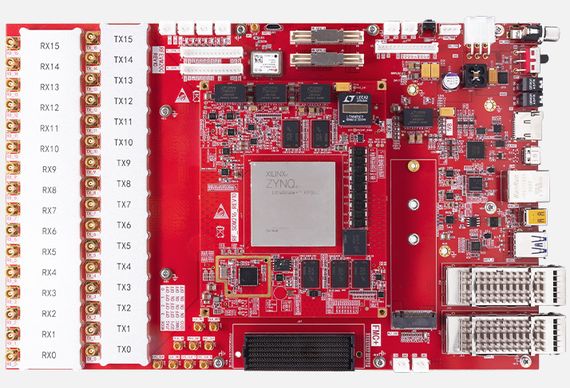

Featuring the AMD/Xilinx's Zynqâ„¢ UltraScale+â„¢ RFSoC XCZU49DR-2FFVF1760 Adaptive SoC
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynqâ„¢ UltraScale+â„¢ RFSoC based application.
* The AXRF49 development board consists of a ACRF49 SoM and base board. If you want to purchase ACRF49 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
