Product Description

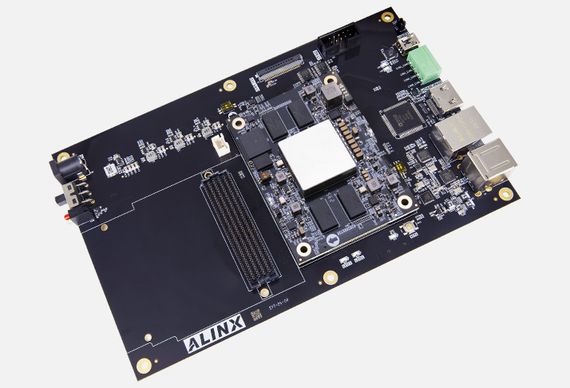

AXK402 is a professional Kosmo2 FPGA development platform based on the PG2K400 SoC, integrating a dual-core ARM Cortex-A53 processor and FPGA logic on a single chip, with a core board for processing and memory, and an expansion board providing diverse interfaces like FMC, Gigabit Ethernet, USB, HDMI, CAN, and LVDS for high-speed data exchange and industrial applications.
Applications
Automotive
â— Road Sign Recognition
â— ADAS
Communication Network
â— Ethernet Backhaul
â— Small Cell Baseband
â— Network Switch
â— Software Defined Radio
Industrial
â— Motor control
â— Industrial Control
â— Industrial IoT
â— Instrumentation
â— Smart Grid
Video and Image Processing
â— Professional Cameras
â— Computer Vision
â— Machine Vision
â— Video Surveillance
Medical
â— Endoscopy
â— Ultrasound, CT, MRI
Key Features
System-on-Module
â— PANGOMICRO Kosmo-2 SOPC:
◆ ARM® dual-core Cortex™-A53 up to 1 GHz◠Pluggable module with 4 x board-to-board connectors
â— 1 GByte (32-bit) DDR3 SDRAM on PU
â— 1 GByte (32-bit) DDR3 SDRAM on PA
â— 32 MB OSPI Flash
â— 16 MB QSPI Flash
â— 8 GB eMMC FlashBase Board

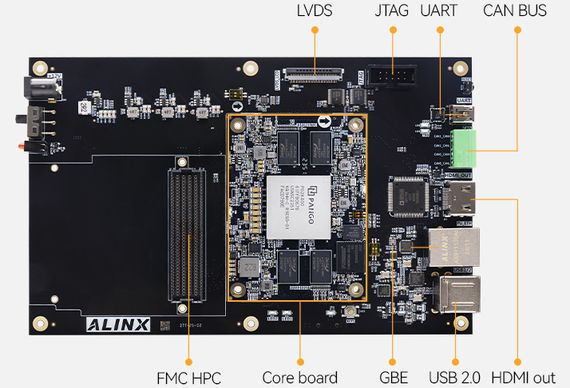

â— 1 x FMC HPC
â— 1 x Gigabit Ethernet
â— 1 x HDMI
â— 2 x CAN
â— 2 x USB2.0 (Host)
â— 1 x UART to USB
â— 1 x JTAG
â— 1 x LVDS (40PIN FPC)

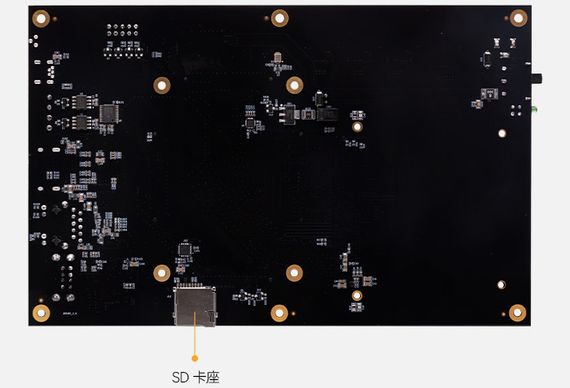

â— 1 x Micro SD
â— 7 x LED (2 x core board+ 5 x Base Board)
â— 2 x KEY (1 x RST + 1 x PA User)
â— 12V single supply
â— Dimensions: 190 x 120 mm form factor
What's Inside the Box
ALINX Kosmo-2 SOPC PG2K400 development board and Some Accessories

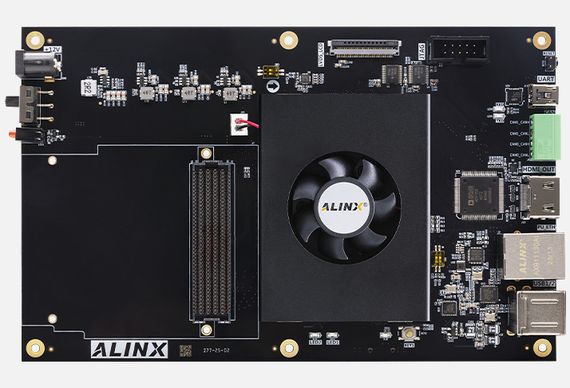

The FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoPC modules – it is low-profile and covers the whole PG2K400 device surface.
| Base Board | 1 | System-on-Module | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
| 12V Power Adapter | 1 | Heatsink Kit (preinstalled) | 1 |
| TF Card | 1 | Card Reader | 1 |

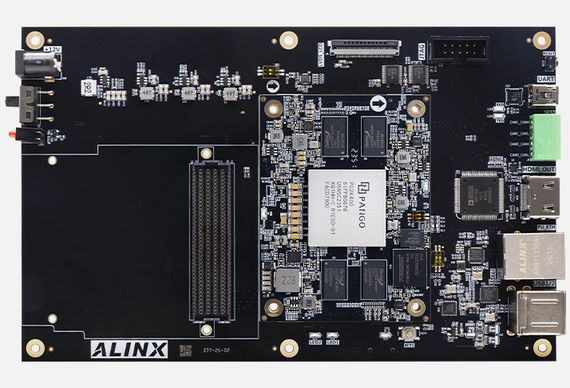

Development Board Features
Featuring the PANGOMICRO Kosmo-2 SOPC PG2K400-6IFFBG67 Adaptive SOPC
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any PANGOMICRO Kosmo-2 SOPC based application.
* The AXK401 development board consists of a K400 SoM and base board. If you want to purchase K400 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
