Overview Pmod LS1

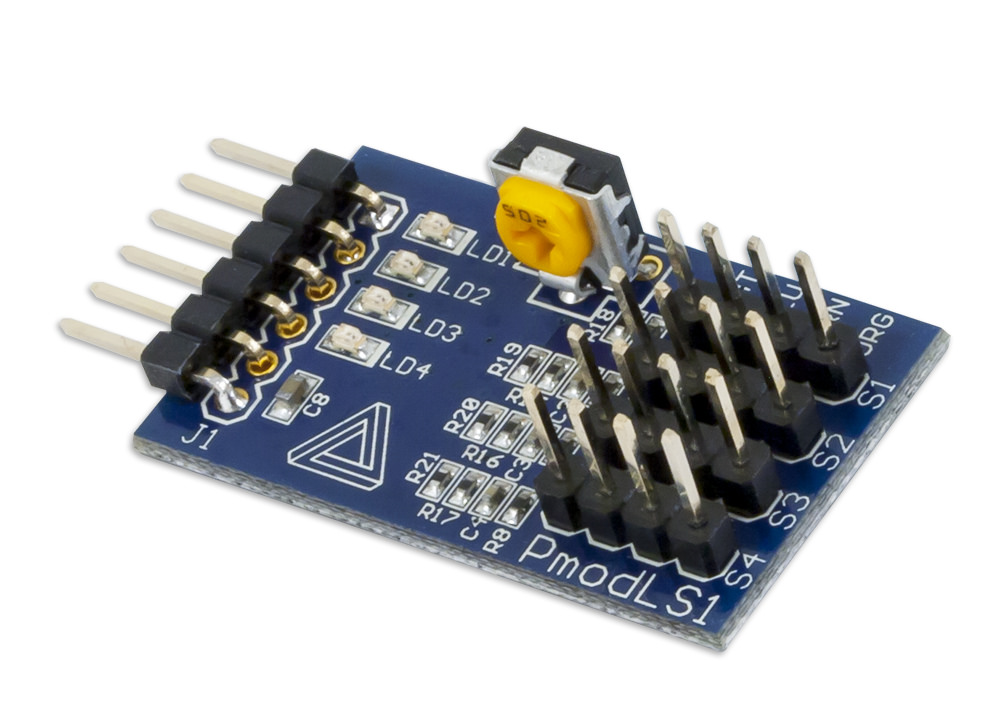

The Digilent Pmod LS1 allows users to receive signals from multiple optical sensors, such as the popular combination of an IR LED with an IR sensor used in line-following robots.

Features

Infrared light detector with on-board sensitivity adjustment
Interface with up to four reflective or transmissive photo detectors
Works with Digilent IR Proximity Sensor
Small PCB size for flexible designs 1.4“ × 0.8” (3.6 cm × 2.0 cm)
6-pin Pmod connector with GPIO interface
Follows Digilent Pmod Interface Specification Type 1

Scope of Delivery

1 x Pmod LS1

Pmod Hardware Compatibility Guide

Digilent's guide about determining hardware compatibility.

References

Manufacturer: Digilent Inc.
Manufacturer's article name: Pmod LS1 - Infrared Light Detector
Manufacturer's article number: 410-086

Resources

Other Digilent products are available on request.
